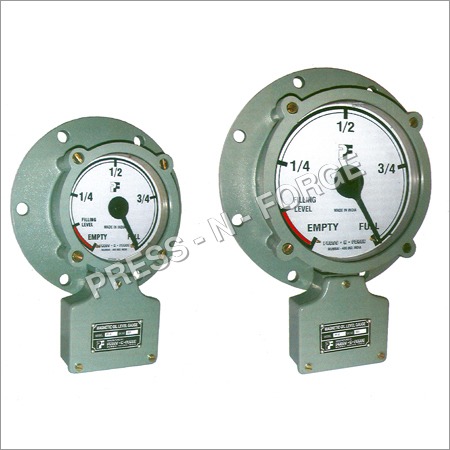

Magnetic Oil Gauge

Magnetic Oil Gauge
Magnetic Oil Gauge
Product Code : 15
Brand Name : PRESS - N - FORGE
Price And Quantity
  • Minimum Order Quantity
  • 5
  • Unit of Measure
  • Piece/Pieces
Product Description

We have carved a niche for ourselves as the leading manufacturer, exporter and supplier of excellent quality Magnetic Oil Gauge that is used for measuring level of oil in machines. It is manufactured by our seasoned professionals using high quality components and modern technology. To ensure its flawlessness, the offered product is tested on various parameters by our quality controllers. Our precious clients can avail this Magnetic Oil Gauge in various specifications at market leading prices.

Features:

  • Long working life
  • High performance
  • Compact design
  • Accurate measurement



Exclusive Features of our oil level Gauge

  • Full body is made out of Aluminium LM - 6 Die Casting for Zero Leakage & Better Finish.
  • Gear Teeth are Completely Meshed for Smooth Movement of Pointer.
  • Magnets are placed in Special Manner to Ensure Complete Synchronization in their movement.
  • Adjustable Cam Assembly to set Alarm at any Level of Oil Conservator.
  • UV Proof Pure Polyester Powder Coated Finish with Seven Tank Hot Chromating Cleaning Process.

Application
MOG is used to show on line oil level inside any tank or vessel. In case of transformer, it is used to show analogic indication of oil level inside the conservator tank & upon requirement it also gives alarm signal when the oil level reduces below minimum and / or maximum admitted level.

Technical Specifications

Operating Liquid

Transformer oil to IS 335.

Operating Temp.

-25 to + 100°C of oil.

Working Pressure

0 to 4 Kg/cm2

Environment

Suitable for indoor & outdoor operation.

Electric Switch

SPST Mercury / Micro Switch, Normally open Contacts, Close contacts can be provided on request.

Contact Rating

5.0 Amp 240 V.AC 50 Hz, 0.5 Amp 240 V.DC

Switch operation

Normally open, Closes when oil-level drops to near filling level.
Switch recovers automatically on rising of oil level.

Float Travel

90°

External Surface Finish

UV Proof pure polyester powder coating.

Cable Box & Terminals

Our MOG is fitted with weather proof cable box with 3/4" B.S. conduit thread for Cable Gland.
