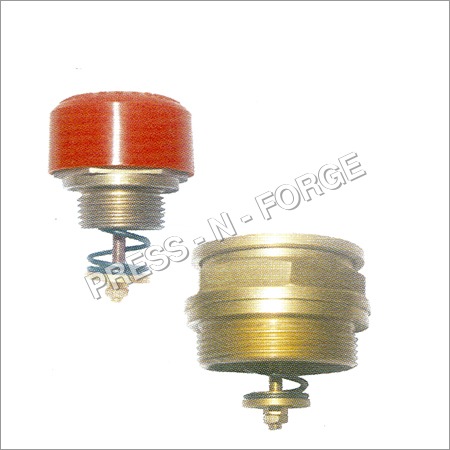

Pressure Relief Valve

Next > >

<< Previous

Send Inquiry

Product Code : 09

Brand Name : PRESS - N - FORGE

Price And Quantity

Minimum Order Quantity
5 Piece
Price
3000 INR/Piece

Product Description

We are betrothed in manufacturing, exporting and supplying a wide range of Pressure Relief Valve that can withstand high pressure and is available in various specifications as per the diverse needs of the clients. In order to manufacture this valve as per the set industry standards, our professionals use the finest quality raw material and latest techniques. The available valve is used in various industries. We are offering this portable Pressure Relief Valve at industry leading prices.

Features:

Durability
Excellent strength
Sturdiness
Rust resistance

Pressure Relief Valve

Compact, Economical & Highly Reliable Design.
The Short Tail allows an Easy Placement in any Portion of the Cover.
Pressure Rating adjustable from 0.15 to 0.70 Kg/cm².
Tolerance 0.05Kg/cm².
Rugged Forged Brass Body & Shutter with 1" & 2" B. S. P. outer Thread for Vertical or Horizontal Mounting on The Tank.
The Centre Rod is Made out of Brass to Ensure a Safe & Steady Service and a Long Life.
Protection Built into the Cap in Order to Direct any Oil Spills Downward.
The Valve can be used as Filling Cap Too.
Port Connections available 1" B. S. P & 2" B. S. P.

Application
PRV is a safety device for the Distribution Transformers upto 5000 KVA, OLTC and other similar equipements. This PRV is used to prevent heavy damages of the tank in case of sudden rise of internal pressure.

Table of Dimensions

IT. No	Description	Model	PPRV-1	PPRV-2
1	Nut	O	55	73
2	Stem	H	75	76
3	Steel Spring	A	15	15
4	Centre Disc	B	20	15
5	Brass Body	C	54	55
6	Sealing Ring	D	46 A/F	60 A/F
7	Brass Shutter	E	1" B.S.P.	2" B.S.P.
8	Protective Cap	F	45	67
